Power Series Model PW625

Incline T-Bar Row

The t-bar row machine is a plate-loaded rowing station that builds upper body pulling strength in commercial gyms and fitness facilities. Its universal bearing assembly keeps the movement smooth from close to wide grips, so the lats, mid-back and arms work through a full range of motion using standard free-weight plates.

Width 132.1 cm 52 in
Height 123.5 cm 48.625 in
Length 143.5 cm 56.5 in
Weight 136.1 kg 300 lb
Starting resistance 20 kg 45 lb
Max load 122 kg 270 lb
Full specifications
Muscle groups
Machine family
Equipment type
Product line

Description

The t-bar row machine is a plate-loaded rowing station that builds upper body pulling strength in commercial gyms and fitness facilities. Its universal bearing assembly keeps the movement smooth from close to wide grips, so the lats, mid-back and arms work through a full range of motion using standard free-weight plates.

10 height adjustment positions at the seat base and 3 foot placement options set the chest support, elbows and torso angle for each lifter, so shorter and taller members keep the same strong position on one station.

4 standard weight storage horns, up from 2 on the previous generation, and 2 loading horns keep heavy plates at the machine instead of on a separate weight tree, which frees floor space in the free weight area.

Atlantis Strength builds this rowing machine as commercial gym equipment for daily use, so the movement path stays consistent under heavy load.

Key features

  • Universal bearing assembly provides smooth omnidirectional movement.
  • Multiple handgrips accommodate narrow, neutral and wide grips.
  • 10 height adjustment positions at the seat base for a precise setup.
  • Four standard weight storage horns (up from two) eliminate the need for separate weight trees.
  • Two loading horns for added loading capacity.
  • Three foot placement options.

Specifications

Measurement Metric Imperial
Width 132.1 cm 52 in
Height 123.5 cm 48.625 in
Length 143.5 cm 56.5 in
Weight 136.1 kg 300 lb
Starting resistance 20 kg 45 lb
Max load 122 kg 270 lb

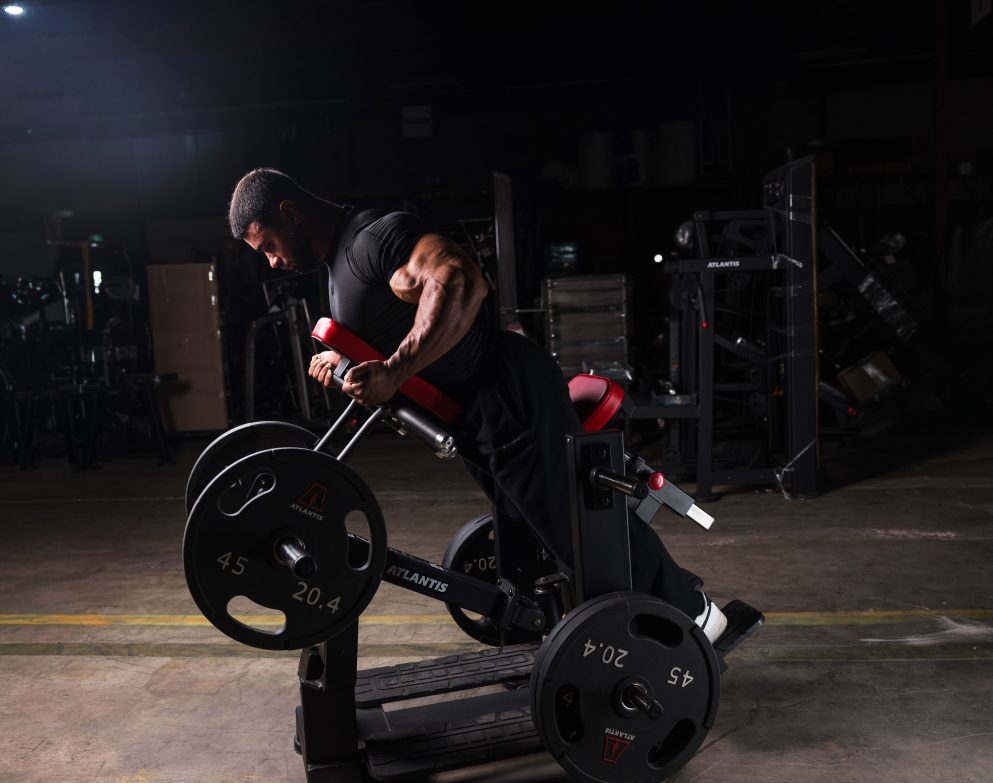

An Atlantis-equipped training floor
